Automatic Cellophane Overwrapping Machine for Carton Box
Automatic cellophane overwrapping machine is mainly applied to the packaging of square-shaped boxes and is commonly used in many industries such as medicine, food, daily chemistry, cosmetics, video products, rubbers, electronics, etc.
Product Description
Introduction of Automatic Cellophane Overwrapping Machine
Automatic cellophane overwrapping machine is designed to wrap products of cuboid shapes with PP film or paper in various industries, such as perfume, medicine, cigarette boxes, etc.
Automatic cellophane overwrapping machine makes the product packaging better and also prevents damage during the handling of goods and prevents dust and moisture.
Automatic cellophane overwrapping machines can be connected with an automatic cartoning machine, condom packing machine, liquid bottling machine, and more types of machinery to form complete packing lines.

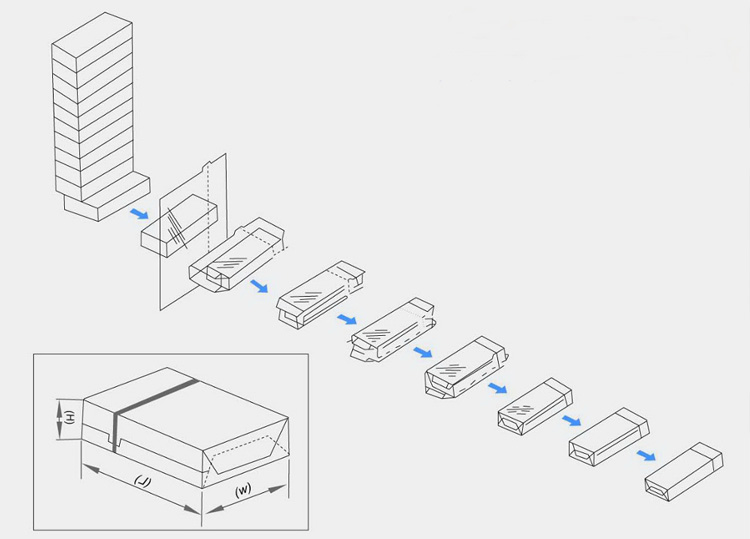

How Does Automatic Cellophane Overwrapping Machine Work?
- The box is transported by a conveyor.
- The cutter cuts the film into a length that meets the requirements.
- The transmission mechanism pushes the film-wrapped boxes to the feeding pusher, and the feeding pusher rotates continuously at a certain speed.
- Film wrapping, folding, and one-side heat sealing are realized in sequence.
- Convey the finished product.
- During the conveying process, the two ends are folded in and heat sealed.
Features of Automatic Cellophane Overwrapping Machine
- Easy to operate.
- It can wrap different sizes of carton boxes such as cigarette, cosmetic, tea and gift boxes.
- The filling range and bag size are adjustable.
- Safety shields can be customized.
- Automatic feeding, automatic packaging, and automatic counting.
- Cost-effective and low maintenance.
- Protects products and prevents dust and moisture.
- High flexibility and less waste.
- The cellophane overwrapping machine adopts the advanced dual protection mechanism, which ensures that other spare parts will not be damaged to the maximum extent when the machine is running.
- The wrapping machine unites film rolling and heating functions.
- Anti-wear extends the machine’s life.
- Neatly tuck and fold end overwrapping.

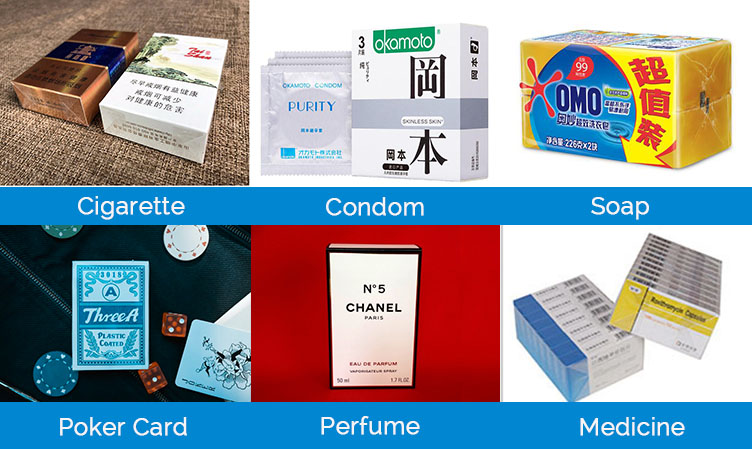

Applications of Automatic Cellophane Overwrapping Machine
- Automatic cellophane overwrapping machine is widely applicable to automatic film packaging various single-piece or slice-shaped collective articles with a gold tear tape, such as:
- Cosmetics
- Pharmaceutical products
- Confectionery
- Tea and coffee
- Daily necessities
- Stationery
- CD, DVD
- Food
- Tobacco
- Various packaged products
Technical Data
Model | SED-130SWB | SED-200SWB | SED-300SWB |
Package Material | BOPP film, PVC film, etc. | ||
Production Capacity | 30-150 packs/min | 30-100 packs/min | 5-30 packs/min |
Packaging Size | 60-130*40-100*10-40 | 60-200*40-120*10-60 | 50-300*40-250*10-90 |
Power of Supply | AC220V 50Hz, 3kW | AC220V 50Hz, 3.5kW | AC380V 50Hz, 6.5kW |
Weight | 750kg | 900kg | 1050kg |
Outline Dimensions (L x W x H) | 2400x700x1500mm | 2500*1000*1500mm | 2455×910×1750mm |
