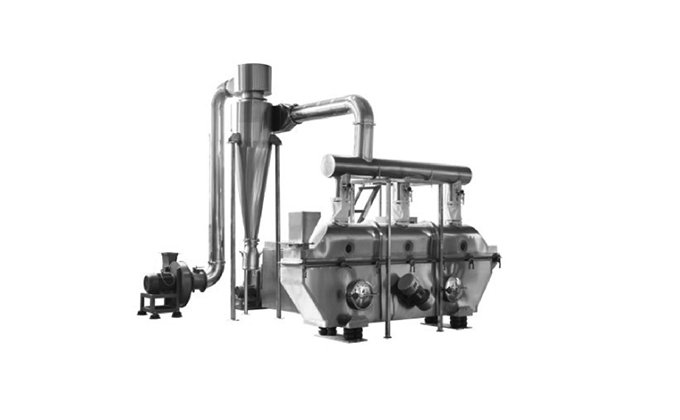

SED-ZGF Series Vibrating Fluid Bed Dryer Machine
The raw material is heated evenly by a vibrating fluid bed dryer machine. Heat exchange is fully used, and drying capacity is high. Compared with ordinary dryers, the energy that can be saved is about 30%.
Product Description
Features of SED-ZGF Series Vibrating Fluid Bed Dryer Machine
- The vibration is created by the motor. It is stable in operation and convenient in maintenance, has low noise, and long machine life expectancy.
- The fluidized state is stable and has no dead angles.
- It is good in regulation and wide in suitability. The thickness of the raw material layer and movable speed inside the fluidized bed drying machine and the amplitude can be adjusted through continuous variable speed settings.
- Very delicate and may only create minor damage to the surface of raw materials. The equipment can be used for drying raw materials that are easily broken. The drying effect can not be affected even if raw materials have an anomalous shape.
- It is effective to in preventing cross pollution between raw material and air because the equipment adapts a fully closed structure. The environment of operation is clean and secure.
Technical Data
| Model | Fluid Bed(m2) | Inlet Air Temperature(°C) | Outlet Air Temperature (°C) | Evaporate Capacity (kg/h) | Vibration Motor | |
| Model | Power (kW) | |||||
| SED-0.9WGF | 0.9 | 70-140 | 40-70 | 20-35 | SED-1WGF | 0.8×2 |
| SED-1.35WGF | 1.35 | 70-140 | 40-70 | 35-50 | SED-2WGF | 0.8×2 |
| SED-2.025WGF | 2.025 | 70-140 | 40-70 | 50-70 | SED-3WGF | 1.1×2 |
| SED-2.7WGF | 2.7 | 70-140 | 40-70 | 70-90 | SED-4WGF | 1.1×2 |
| SED-2.7WGF | 2.7 | 70-140 | 40-70 | 80-100 | SED-5WGF | 1.5×2 |
| SED-3.6WGF | 3.6 | 70-140 | 40-70 | 100-130 | SED-6WGF | 1.5×2 |
| SED-4.5WGF | 4.5 | 70-140 | 40-70 | 120-140 | SED-7WGF | 2.2×2 |
| SED-5.4WGF | 5.4 | 70-140 | 40-70 | 140-170 | SED-8WGF | 2.2×2 |
| SED-4.5WGF | 4.5 | 70-140 | 40-70 | 130-150 | SED-9WGF | 2.2×2 |
| SED-5.625WGF | 5.625 | 70-140 | 40-70 | 150-180 | SED-10WGF | 3.0×2 |
| SED-6.75WGF | 6.75 | 70-140 | 40-70 | 160-210 | SED-11WGF | 3.0×2 |
| SED-9WGF | 9 | 70-140 | 40-70 | 200-260 | SED-12WGF | 3.0×2 |
