Semi Automatic Syringe Filling Machine Multifunctional SED-1BYGF-K
SED-1BYGF-K semi automatic syringe filling machine adopts pure pneumatic filling method without the need for electricity. It is especially suitable for use in a humid environment with explosion-proof requirements and has a high degree of safety.
Product Description
Description of Semi Automatic Syringe Filling Machine
The semi automatic syringe filling machine adopts pure pneumatic filling method without the need for electricity, and it is especially suitable for use in a humid environment with explosion-proof requirements, and has a high degree of safety.
An oil-water separator is installed on the left side of the prefilled syringe filling equipment, which can effectively filter the compressed air, make the inside of the cylinder dry and have a long service life.
Features of Semi Automatic Syringe Filling Machine
- Made of 304 stainless steel, meeting the requirements of GMP
- Equipped with a stainless steel quick-release joint, which is quick and convenient for disassembly and assembly, and is easy to clean and maintain.
- The material outlet adopts a drip-proof filling nozzle, which has good sealing performance and ensures accurate filling volume
- The diameter of the crystal head of the filling nozzle can be customized according to the diameter of the needle tube head, which is suitable for syringes of various specifications

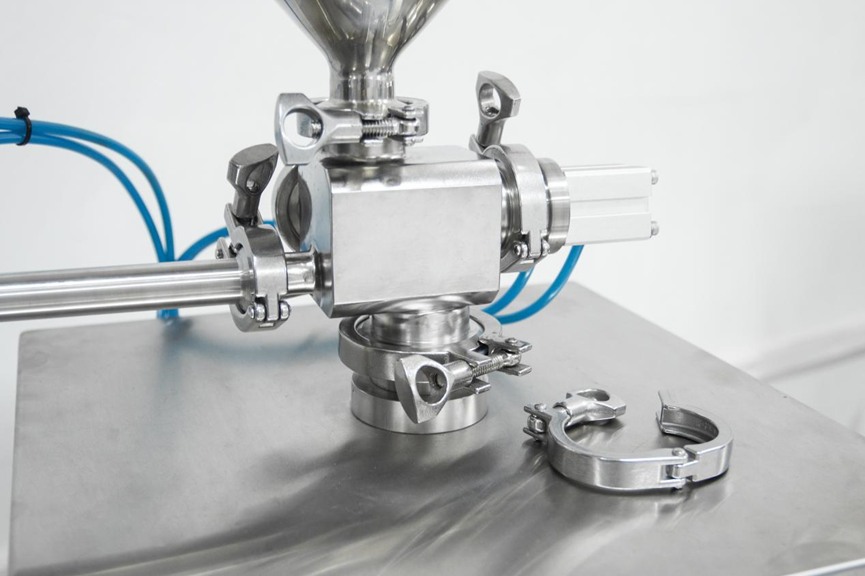

- Adopts a five-way rotary valve, using the hopper to feed or use the feed tube to feed, which is suitable for a variety of materials
- The control panel is equipped with a barometer, which can monitor the air pressure at any time, and the discharge and suction speed can be adjusted
- The filling volume can be adjusted by hand, which is easy to operate and easy to use
- The height-adjustable console has excellent carrying capacity and is suitable for a variety of products
- Foot switch, convenient and flexible to use, manual/automatic feeding mode can be switched freely
Technical Data
Model | SED-1BYGF-K |
Applicable Materials | liquid and ointment |
Filling Range (ml) | 1-80 |
Filling Accuracy | ≤±2% |
Filling Speed (times/min) | 10-30 |
Working Pressure (MPa) | 0.4-0.8 |
Weight (kg) | 50 |
Overall dimensions (L x W x H mm) | 400*40*1450 |
