Automatic 3-in-1 Bottle Washing, Filling and Capping Machine SED-WFC

Product Description

Introduction of Automatic 3-in-1 Washing, Filling and Capping Machine

The automatic 3-in-1 washing, filling and capping machine integrates washer, filler, and capper equipment together as a three-in-one machine. Widely used in the beverage, wine, and pharmaceutical industries. It is mainly used for filling liquid products such as water, wine, beverages, milk, etc. With full automation, it is best suited for filling polyester bottles or plastic bottles.

It can also connect with a water treatment system, automatic labeling machine, shrink wrapping machine, and others to form a complete bottled liquid product production line.

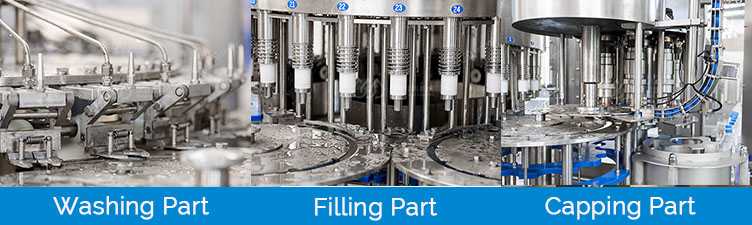

Main functions include:

• Rinsing of empty bottles
• Liquid filling of rinsed bottles
• Capping of filled bottles

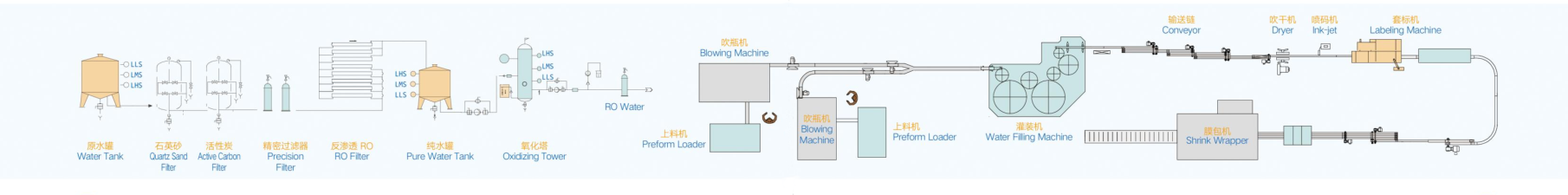

Flow Chart of Automatic 3-in-1 Washing, Filling and Capping Machine

Flow Chart: (Bottled Pure Water example)

A) Bottle Production Line: PET Resin –Injection Moulding Machine -Bottle Blowing Machine –PET Bottle

B) Water Treatment System: Pure Water–Pump–Silica Sand Filter–Carbon Filter–Water Softener–Reverse Osmosis -UV Sterilizer-Ozone Generator–Finished Water Tank

C) Filling & Packing: Bottle Unscrambler–Air Conveyor–Washing, Filling, Capping 3 in 1 Machine–Checker–Blow Dryer–Printer–Labeling Machine –Packing Machine –Stock output

Features of Automatic 3-in-1 Washing, Filling and Capping Machine

• Easy operation and maintenance.
• Advanced PLC and touch screen.
• Gravity filling with high capacity.
• Reduces labor and production time.
• All components contacting liquid products are made with 304 stainless steel.
• Applicable for various bottle types.
• Conveniently and rapidly adjustable.
• High automation.
• No-bottle detection: stops filling and capping.
• No dead angles and easy to clean.
• Rinse-clamp design is strong and durable, no contact with bottle-mouth, to prevent pollution.

Applications of Automatic 3-in-1 Washing, Filling and Capping Machine

The automatic 3-in-1 bottle washing, filling and capping machine is used for producing all kinds of mineral water, purified water, flavored water, alcoholic beverage and other non-gas liquid contained in PET bottles with screw caps.

This series of machines has a variable capacity ranging from 3000 BPH to 18000 BPH.
