Multi-Lane Liquid Paste Stick Packing Machine SED-YDB
Multi-lane liquid paste stick packing machine is used for quantitative liquid and paste packaging in the food, pharmaceutical, and personal care industries.
Product Description
Introduction of Liquid Paste Stick Packing Machine
Multi-lane liquid paste stick packing machine is mainly used for quantitative liquid and paste packaging such as tomato ketchup packets, chilli sauce packets, soy sauce packets, fruit juice packets, ginger garlic paste packing, wasabi packets, bath gel sachets, hair conditioner packets, sample product packets and so on, with four side sealing.
Features of Multi-Lane Liquid Paste Stick Packing Machine
- Multi-lane liquid/paste stick packing machine can produce several stick packets at the same time, greatly saving labor
- Automatically finishes all the work: bag making–measuring–filling–sealing–cutting–counting–date code printing
- Product contact components and the shell is made of stainless steel
- PLC control system, large touch screen, easy to use
- Shutdown while no film, reduces waste of film
- High precision photoelectric sensor
Advantages of Stick Packaging
- Stick packet offers a price advantage and convenience to customers
- It is easy to manufacture.
- Compared with other packaging styles, stick packs have a much less cost on purchasing film.
- This will reduce manufacturing and packaging costs.
- It can be easily moved around.
Application of Multi-Lane Liquid Paste Stick Packing Machine

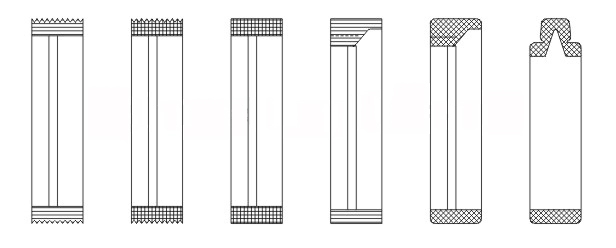

- An automatic multi-lane liquid/paste stick packing machine is suitable for packing plastic stick packets with four-side sealing.
- Food: condiments, mayonnaise, chilli sauce, tomato ketchup, honey, edible oil, sauce, ginger garlic paste, wasabi, soy sauce, sample sauce, etc.
- Personal Care: toothpaste, shampoo, bath gel, skin lotion, cosmetic cream, hair conditioner, etc.
- Others: car wash detergent, glue, etc.
Technical Data
Parameters | Unit | Model | |||
SED-350/4YDB | SED-500/7YDB | SED-900/12YDB | SED-1200/16YDB | ||
Bag Length | mm | 50-250 | 50-300 | 50-300 | 50-300 |
Bag Width | 60-85mm | 40-85 | 32-105 | 35-105 | 35-105 |
Packing Speed | bags/min/lane | 60 | 60 | 60 | 60 |
Filling Capacity | ml | 1-100 | 1-100 | 1-100 | 1-100 |
Sealing Fashion | / | 4 side sealing | |||
Applicable Film | / | PET/AL/PE PET/PE NY/AL/PE NY/PE | |||
Max Film Width | mm | 350 | 500 | 900 | 1200 |
Power Voltage | V/Hz | 220V/50Hz | 380V/50Hz | ||
Power | kW | 5.5 | 10 | 12 | 12 |
Overall Dimensions | mm | 900X1400X1800 | 1700X3050X1900 | 2000X1600X2600 | 2000X1600X2600 |
Weight | kg | 650 | 1200 | 1200 | 1200 |
