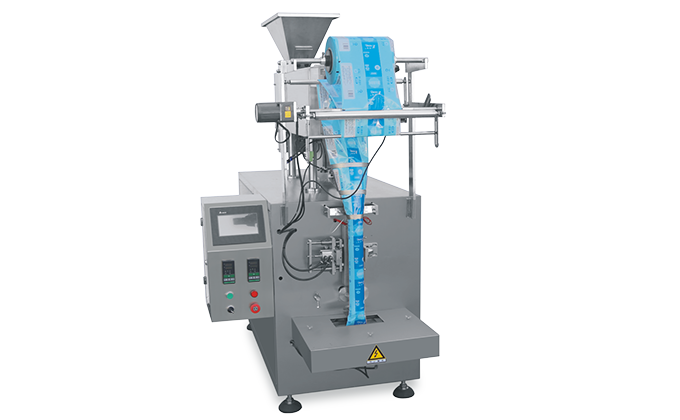

Vertical Pillow Pouch Packaging Machine for Granule
SED-KLB Series Pillow Pouch Packaging Machine for Granule is suitable for packing granular products with a good free flow into pillow-shaped sachets. Common products that use this packaging include pharmaceutical granules, salt, desiccants, pesticide granules, seeds, etc.
Product Description
Description of Vertical Pillow Pouch Packaging Machine
SED-KLB Series Pillow Pouch Packaging Machine for Granule is suitable for packing granular products with a good free flow into pillow-shaped sachets. Common products that use this packaging include pharmaceutical granules, salt, desiccants, pesticide granules, seeds, etc.
The granule pouch packing machine completes filling, sealing and packaging in one machine.
Feature of Vertical Pillow Pouch Packaging Machine
- Wide application in various industries.
- All parts of the sachet packing machine are in contact with products made of food grade SUS304.
- Low waste disposal.
- Easy to operate and maintain.
- Complies with GMP standards.
- Automatically stop when overheated, ensuring the quality of sealing.
- Adopts PLC controller and photoelectric tracking.
- Easy to change for different pouch sizes and filling volume.
- Weighing, bag making, filling, sealing, cutting, counting and printing can be done automatically.
- Fast speed, stable operation and low noise.
- Adjust the packing speed electronically within the rated range.
Application of Vertical Pillow Pouch Packaging Machine
SED-KLB Series automatic vertical packing machine is suitable for packing products with granule shapes. Such as granular drugs, granulated sugar, puffed food products, crackers, coffee, tea, monosodium glutamate, salt, seeds, melon seeds, dried fruits, desiccants and other fine particles.
The vertical form fill seal machine for sale is applied for filter cotton paper, composite film, aluminum foil bags, non-woven fabrics, oil paper, heat sealing plastic bags and other heat-sealing packaging materials.
Technical Data
| Model | SED-90KLB-F | SED-100KLB-F | SED-110KLB-F | SED-130KLB-F | SED-150KLB-F |
| Packing material | OPP/CPP,OPP/CE,PET/PE And other composite materials | ||||
| Measuring Range (ml) | 1–50 | 1-100 | 1-60 | 1-150 | 1-500 |
| Bag-Making Size (L*W mm) | (20-150)*(20-90) | (60-160)*(30-100) | (60-190)*(30-100) | (60-160)*(30-130) | (30-200)*(20-150) |
| Packing Speed (bags/min) | 30-40 | 20-40 | 20-40 | 20-40 | 20-40 |
| Max Width of Film Roll (mm) | 180 | 200 | 200 | 260 | 320 |
| Control System | PLC control system+English interface | ||||
| Sealing Type | 3 side sealing | 4 side sealing | 4 side sealing | 4 side sealing | back sealing |
| Power Supply | 1N+PE/AC220V/50Hz 1.1kW | 1N+PE/AC220V/50Hz 1.5kW | 1N+PE/AC220V/50Hz 1.5kW | 1N+PE/AC220V/50Hz 1.5kW | 1N+PE/AC220V/50Hz 2kW |
| Dimensions (L*W*H mm) | 720*680*1750 | 720*680*1800 | 820*780*1800 | 850*780*1800 | 1140*1080*1800 |
