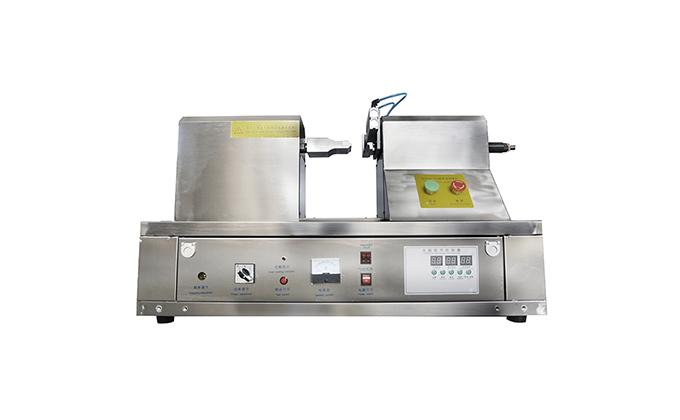

SED-BF Series Semi-Automatic Ultrasonic Plastic Tube Sealing Machine for Cosmetic

Product Description

The Introduction of Ultrasonic Tube Sealing Machine

The ultrasonic plastic tube sealing machine is suitable for toothpaste, cosmetics, medicines, and food products. With horizontal aluminum alloy structure and stainless-steel casing, its environmentally friendly and easily sanitized. It has an independent platform, vertical/horizontal adjustable worktable, long worktable, and ensures easy operation, stable performance, and high efficiency.

The Working Principle of Ultrasonic Tube Sealing Machine

• Automatic tube loading one by one
• Color mark orientation and tube detecting
• Auto Filling
• Ultrasonic sealing and date coding
• Cutting
• Discharging
• Transporting (Optional device, If connected with conveyor belts)

The Advantages of Ultrasonic Sealing

With ultrasonic sealing, the heat required for melting is only generated inside the thermoplastic sealing layer. For localized conversion of vibrations to friction heat, the anvil or sonotrode profiles are mostly linear and include radii or small plateaus. These profiles ensure focusing of the energy input and therefore have short sealing times between 100 and 200 milliseconds. With ultrasonic sealing heat is generated at the inside of the film, not by heat input from the outside as is the case with heat sealing, for example. The tools (sonotrode and anvil) that come into direct contact with the packaging material, remain cold during the entire weld process. The support layer remains almost cold and upon termination of energy input, the heat dissipates faster to the outside due to the temperature difference between the support layer and the sealing layer so that the hot-tack resistance is significantly higher.

Compared with heat sealing, the ultrasonic tube sealing has the following advantages:

* Fast Sealing, save time.

* Sealing is nice looking, different shape sealing.

* Lower power consumption, energy saving.

The Applications of Ultrasonic Tube Sealing Machine

The ultrasonic plastic tube sealing machine is widely used in pharmaceutical, cosmetic, food, and chemical industries.

• Tube Type: plastic soft-tube, aluminum plastic laminate tube
• Filling Material: all kind of ointment, adhesives, epoxy glue, skin cream, hair cream, boots oil, toothpaste, liquid, lotion, sauce, cream, etc.

The Features of Ultrasonic Tube Sealing Machine

• Two-dimensional adjustment of work piece platform, it is easy to operate
• It adopts Taiwan cassette mechanism and circuit lines, using infamous brand of ultrasonic parts
• Overload protection, phase separation protection, power-fail protection
• Large ultrasonic output power to ensure the sealing quality of various specifications of tube
• Cosmetic tube sealer can seal soft tube, print date, and cut tubes
• Stainless-steel machine body, strong and beautiful looks
• Ultrasonic frequency meets international standards, harmless to human beings and the environment
