SED-CG Automatic Linear Capping Machine
SED-CG series Automatic Linear Capping Machine is a high-speed twisting capping machine that performs automatic capping of plastic bottles and glass bottles. It is mainly applicable to industries such as medicine, industry, chemical industry, food and so on.
Product Description
Description of SED-CG Automatic Linear Capping Machine
SED-CG automatic linear capping machine is a fully automatic packaging machine designed by our company strictly in accordance with national GMP standards and process requirements.
The main transmission part of the machine is placed in the box body, which avoids the pollution of the materials caused by the wear of the transmission mechanism and the parts that are in contact with the product materials are polished with high precision.
Applications of SED-CG Automatic Capping Machine
SED-CG linear capping machine is mainly applicable for industries such as medicine, industry, chemical industry, food and so on. Suitable for various plastic bottles and glass bottles.
The machine can be used independently or with other machines to form a linked production line. It is compatible with other supporting equipment such as a bottle unscrambler, capsule counting machine, paper inserting machine and sealing and labeling machine.

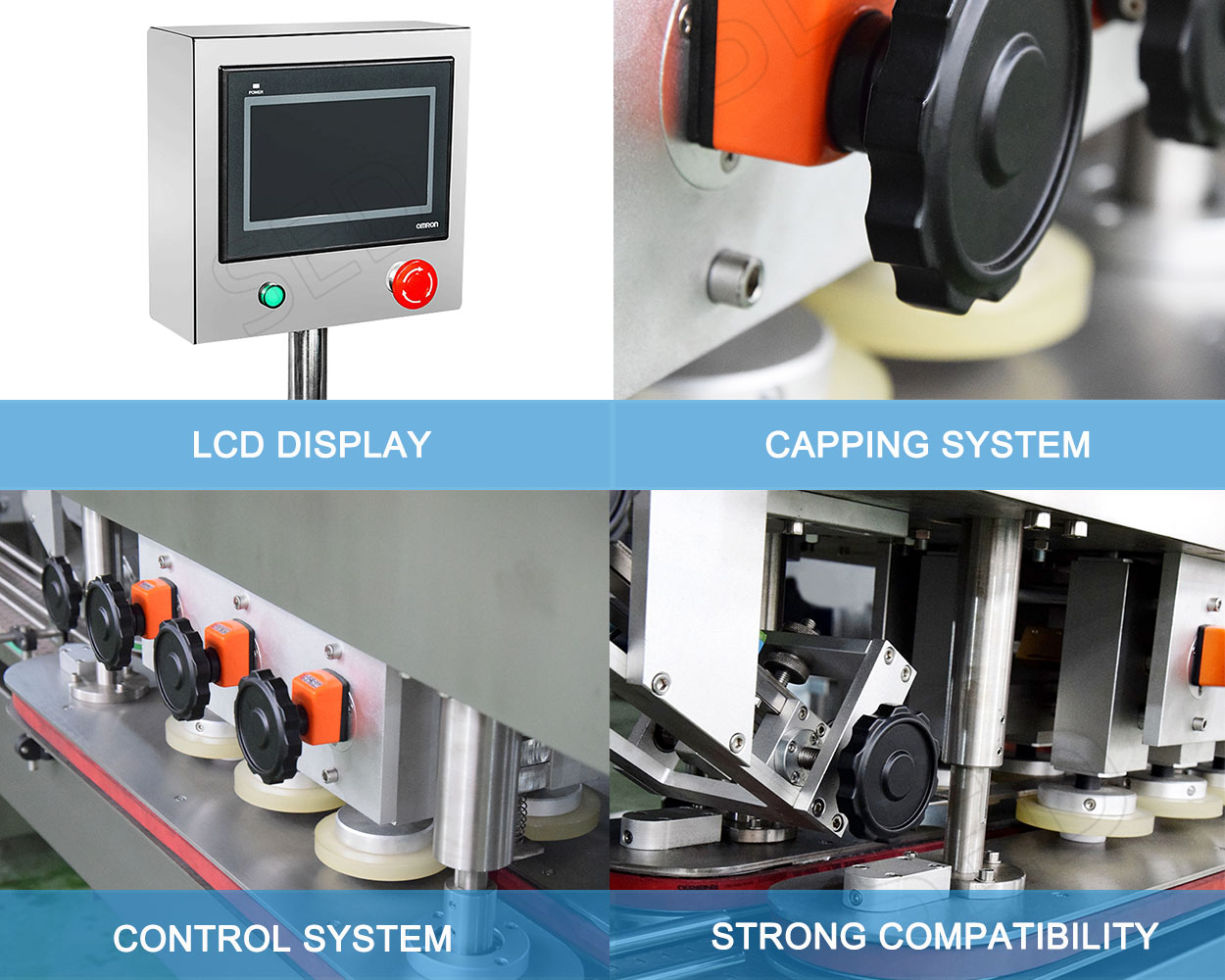

Features of SED-CG Automatic Capping Machine
- Wide application range.
- Lightweight and easy to operate: the machine is made of aluminum alloy and stainless steel.
- Easy to clean and maintain, has no dead corners.
- Adjustable and stable: The bottle screw capping machine can be adjusted according to the height and size of the respective bottle caps within the applicable range.
- Control System: the motor control system for bottle clamping, screw capping and conveying is controlled by imported frequency converters. Users can freely set the production volume within the design range of the machine, which provides more convenience for production arrangements and process formulation.
- Safety protection devices: Examples include shutdown without cover and start-up only with cover.
Technical Data
Model | SED-CG | SED-4CG |
Bottle Diameter (mm) | 20-80 | 20-120 |
Bottle Height (mm) | 40-120 | 40-120 |
Capacity (bottles/min) | 20-100 | 20-120 |
Bottle Cap Diameter (mm) | 20-76 | 20-100 |
Bottle Cap Height (mm) | ≤20 | ≤20 |
Power (kW) | 1.8 | 1.8 |
Power Supply | 220V/50Hz | 220V/50Hz |
Overall Dimensions (L*W*H mm) | 2280*1080*1940 | 2280*1080*1940 |
Weight (kg) | 510 | 510 |
Application | Plastic caps such as normal cap, cap with protective ring, CRC cap, Flip cap, etc. |
