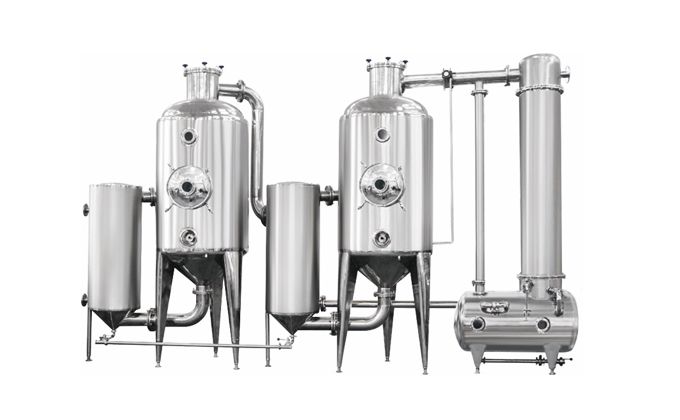

SED-SJH Series Double-Effect Energy Saving Concentrator
The Double-effect Energy Saving Concentrator is suitable for concentrating the liquid in traditional Chinese medicine, Western medicine, glucose, starch, mono sodium glutamate, juice, water, dairy, chemicals, etc. It is especially suitable for low-temperature vacuum concentrations of heat-sensitive materials.
Product Description
Description of Double-effect Energy Saving Concentrator
The Double-effect Energy Saving Concentrator is suitable for concentrating the liquid in traditional Chinese medicine, Western medicine, glucose, starch, monosodium glutamate, juice, water, dairy, chemicals, etc. It is especially suitable for low-temperature vacuum concentrations of heat-sensitive materials.
Features of Double-effect Energy Saving Concentrator
- The equipment combines the external circulation heating system and vacuum concentration together to enhance the evaporation speed and the concentration proportions which can exceed 1.2.
- The liquid material is concentrated in a vacuumed condition and the finished material is free of pollution and the organic solvent can also be recovered.
- With the effects of double-efficient coinstantaneous evaporation, the steam can be used sufficiently, so it can save energy consumption. And compared with the single-efficient concentrator, it saves more than 40% energy.
- The top of the heater comes with an opening device for easy cleaning. The equipment has an automatic drainage system which reduces labor.
- The equipment is configured with a PLC control system in order to control the temperature, pressure, feeding and discharging of the material automatically.
Application of Double-effect Energy Saving Concentrator
Technical Data
| Model Item | SED-500SJH | SED-1000SJH | SED-1500SJH | SED-2000SJH | SED-3000SJH |
| Evaporate (kg/h) | 500 | 1000 | 1500 | 2000 | 3000 |
| Cost Air (kg/h) | 380 | 750 | 1100 | 1600 | 2500 |
| Steam Pressure (Mpa) | |||||
| Tempreture (°C) | Number one 80-90 number two55-70 | ||||
| Vacuum Degree (Mpa) | Number one0.02-0.04 number two0.05-0.08 | ||||
| Dimension (m) L*W*H | 4.5*1*3.2 | 5.5*1.1*3.8 | 6.3*1.2*4.3 | 6.6*1.3*4.5 | 7*1.4*5.1 |
| Circulate Water (T/H) | 10-15 | 20-30 | 30-40 | 40-50 | 50-60 |
